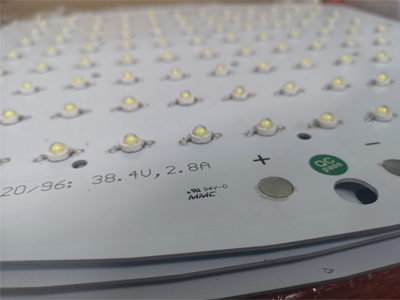

SPECIFICATION
MATERIAL: ALUMINUM - MCPCB LAYERS: 1 Layer MIN TRACK / SPACING: 50/50 mil ↑ MIN HOLE SIZE: 3.0 mm SIZE BOARD: 48.00 mm x 49.00 mm PCB THICKNESS: 2.0 mm (±0.1) COPPER THICKNESS: 2 Oz. SOLDER MASK COLOUR: Top Side / White SILK-SCREEN COLOR: Top Side / Black SURFACE TREATMENT: LF-HASL

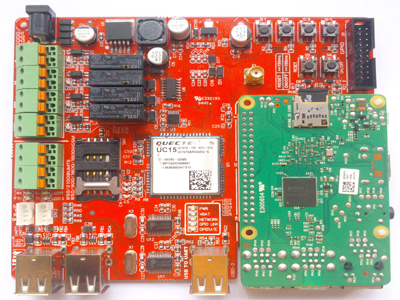

SPECIFICATION
MATERIAL: FR4 LAYERS: MIN TRACK / SPACING: ↑ MIN HOLE SIZE: SIZE BOARD: PCB THICKNESS: 1.6 mm (±0.1) COPPER THICKNESS: 1 Oz. SOLDER MASK COLOUR: Both Side / Red SILK-SCREEN COLOR: Both Side / White SURFACE TREATMENT: LF-HASL

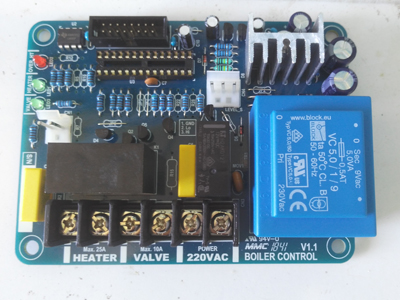

SPECIFICATION
MATERIAL: FR4 LAYERS: MIN TRACK / SPACING: ↑ MIN HOLE SIZE: SIZE BOARD: PCB THICKNESS: 1.6 mm (±0.1) COPPER THICKNESS: 1 Oz. SOLDER MASK COLOUR: Both Side / Blue SILK-SCREEN COLOR: Both Side / White SURFACE TREATMENT: LF-HASL

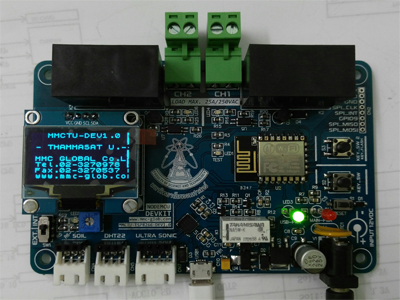

SPECIFICATION
MATERIAL: FR-4 LAYERS: 2 Layers MIN TRACK / SPACING: ↑ MIN HOLE SIZE: SIZE BOARD: PCB THICKNESS: 1.6 mm (±0.1) COPPER THICKNESS: 1 Oz. SOLDER MASK COLOUR: Both Side / Blue SILK-SCREEN COLOR: Both Side / White SURFACE TREATMENT: LF-HASL

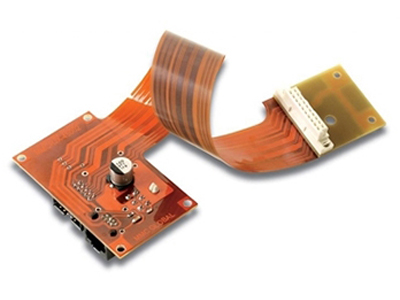

SPECIFICATION
MATERIAL: Rigid-Flex LAYERS: 2 Layers MIN TRACK / SPACING: ↑ MIN HOLE SIZE: SIZE BOARD: PCB THICKNESS: 1.6 mm FR4 + 0.25 mm Flexible (±0.1) COPPER THICKNESS: 1 Oz. SOLDER MASK COLOUR: Both Side / Yellow SILK-SCREEN COLOR: Both Side / White SURFACE TREATMENT: Immersion Gold 2U

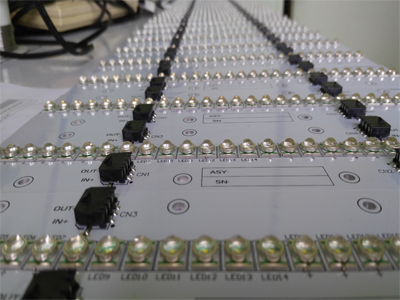

SPECIFICATION
MATERIAL: ALUMINUM LAYERS: 1 Layer MIN TRACK / SPACING: ↑ MIN HOLE SIZE: SIZE BOARD: PCB THICKNESS: 1.6 mm (±0.1) COPPER THICKNESS: 1 Oz. SOLDER MASK COLOUR: Both Side / White SILK-SCREEN COLOR: Both Side / Black SURFACE TREATMENT: LF-HASL

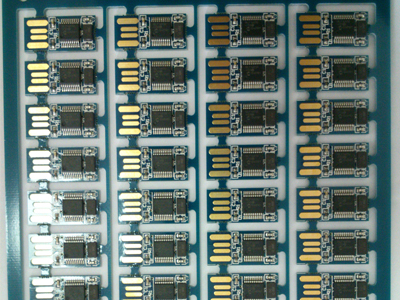

SPECIFICATION
MATERIAL: FR-4 LAYERS: 2 Layers MIN TRACK / SPACING: ↑ MIN HOLE SIZE: SIZE BOARD: PCB THICKNESS: 0.4 mm (±0.1) COPPER THICKNESS: 1 Oz. SOLDER MASK COLOUR: Both Side / Green SILK-SCREEN COLOR: None SURFACE TREATMENT: LF-HASL

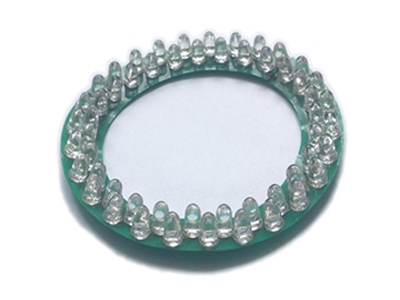

SPECIFICATION
MATERIAL: FR-4 LAYERS: 2 Layers MIN TRACK / SPACING: ↑ MIN HOLE SIZE: SIZE BOARD: PCB THICKNESS: 1.6 mm (±0.1) COPPER THICKNESS: 1 Oz. SOLDER MASK COLOUR: Both Side / Green SILK-SCREEN COLOR: Both Side / White SURFACE TREATMENT: LF-HASL
SPECIFICATION
MATERIAL: FR-4 LAYERS: 2 Layers MIN TRACK / SPACING: ↑ MIN HOLE SIZE: SIZE BOARD: PCB THICKNESS: 1.6 mm (±0.1) COPPER THICKNESS: 1 Oz. SOLDER MASK COLOUR: Both Side / Green SILK-SCREEN COLOR: Both Side / White SURFACE TREATMENT: Immersion Gold 2U
